Specifications

TECHNICAL SPECIFICATIONS
Display
Tecnology Methods	Infrared touch
Active Area Size	86"
Functionality	Integrated AI
Formato	16:9
Surface	Antiglare 5mm Defense Tempered Glass
Numero tocchi simultanei	Up to 50 touches
Touch Systems	Finger & Magic Pen
Resolution	4K 3840 x 2160 pixel at 60Hz 1.07 billion colors (10bit)
Brightness	560cd/m^2
Static contrast	5000:1
View angle	178/178
Life Time	50.000 Hours min.
response time	3ms
Precision	< 1 mm
Processor
CPU	RK3576 Octa-Core with AI
Memory
RAM	8GB
Storage	128GB
Altre caratteristiche
Webcam & Mic	No
Speaker	2x40W + 20W sub
Card reader	Si
Power consumption ?W?	MAX 500W (3W in Standby)
SLOT OPS	Optional OPS Slot OPS 80 Pin Intel-C - 120/195 mm
Certificates	FCC, CE, ROHS, IEC and ISO 9001
Interface
Frontal interface to computer	1x HDMI in, 2x USB-A 3,0, 1x USB C Charge Only, 1x USB Touch
Rear underside interface to computer	2xHDMI in, 1x HDMI out, 1x DP in, 2x USB 3.0, 1x USB 2,0. 2x USB Touch, 1x Mic in, 2x LAN(in/out), 1x COM, 1x OPS slot, 1x Line out, 1x SPDIF, 1x Micro SD Reader. 1x USB Type-C Charge Only
Interface wireless	Wi-Fi 6, Bluetooth 5.2
Dimensions
Dimension	1957x1158,6x91,1 mm
Net weight	67 Kg (Net) - 80 Kg (Gross)
Packaging dimension	2094 x 210 x 1299 mm 80KG
Operating System
Operating System	Android 16 EDLA - upgradable
Software
App	EDU App WXBoard for Windows QuickShare app for mirroring
Stand
Support for wall mounting	Wall bracket included
Floor stand	Optional mobile stand
Warranty
Warranty	3 anni on-center

TECHNICAL SPECIFICATIONS
Display
Tecnology Methods	Infrared touch
Active Area Size	86"
Functionality	Integrated AI
Formato	16:9
Surface	Antiglare 5mm Defense Tempered Glass
Numero tocchi simultanei	Up to 50 touches
Touch Systems	Finger & Magic Pen
Resolution	4K 3840 x 2160 pixel at 60Hz 1.07 billion colors (10bit)
Brightness	560cd/m^2
Static contrast	5000:1
View angle	178/178
Life Time	50.000 Hours min.
response time	3ms
Precision	< 1 mm
Processor
CPU	RK3576 Octa-Core with AI
Memory
RAM	8GB
Storage	128GB
Altre caratteristiche
Webcam & Mic	No
Speaker	2x40W + 20W sub
Card reader	Si
Power consumption ?W?	MAX 500W (3W in Standby)
SLOT OPS	Optional OPS Slot OPS 80 Pin Intel-C - 120/195 mm
Certificates	FCC, CE, ROHS, IEC and ISO 9001
Interface
Frontal interface to computer	1x HDMI in, 2x USB-A 3,0, 1x USB C Charge Only, 1x USB Touch
Rear underside interface to computer	2xHDMI in, 1x HDMI out, 1x DP in, 2x USB 3.0, 1x USB 2,0. 2x USB Touch, 1x Mic in, 2x LAN(in/out), 1x COM, 1x OPS slot, 1x Line out, 1x SPDIF, 1x Micro SD Reader. 1x USB Type-C Charge Only
Interface wireless	Wi-Fi 6, Bluetooth 5.2
Dimensions
Dimension	1957x1158,6x91,1 mm
Net weight	67 Kg (Net) - 80 Kg (Gross)
Packaging dimension	2094 x 210 x 1299 mm 80KG
Operating System
Operating System	Android 16 EDLA - upgradable
Software
App	EDU App WXBoard for Windows QuickShare app for mirroring
Stand
Support for wall mounting	Wall bracket included
Floor stand	Optional mobile stand
Warranty
Warranty	3 anni on-center

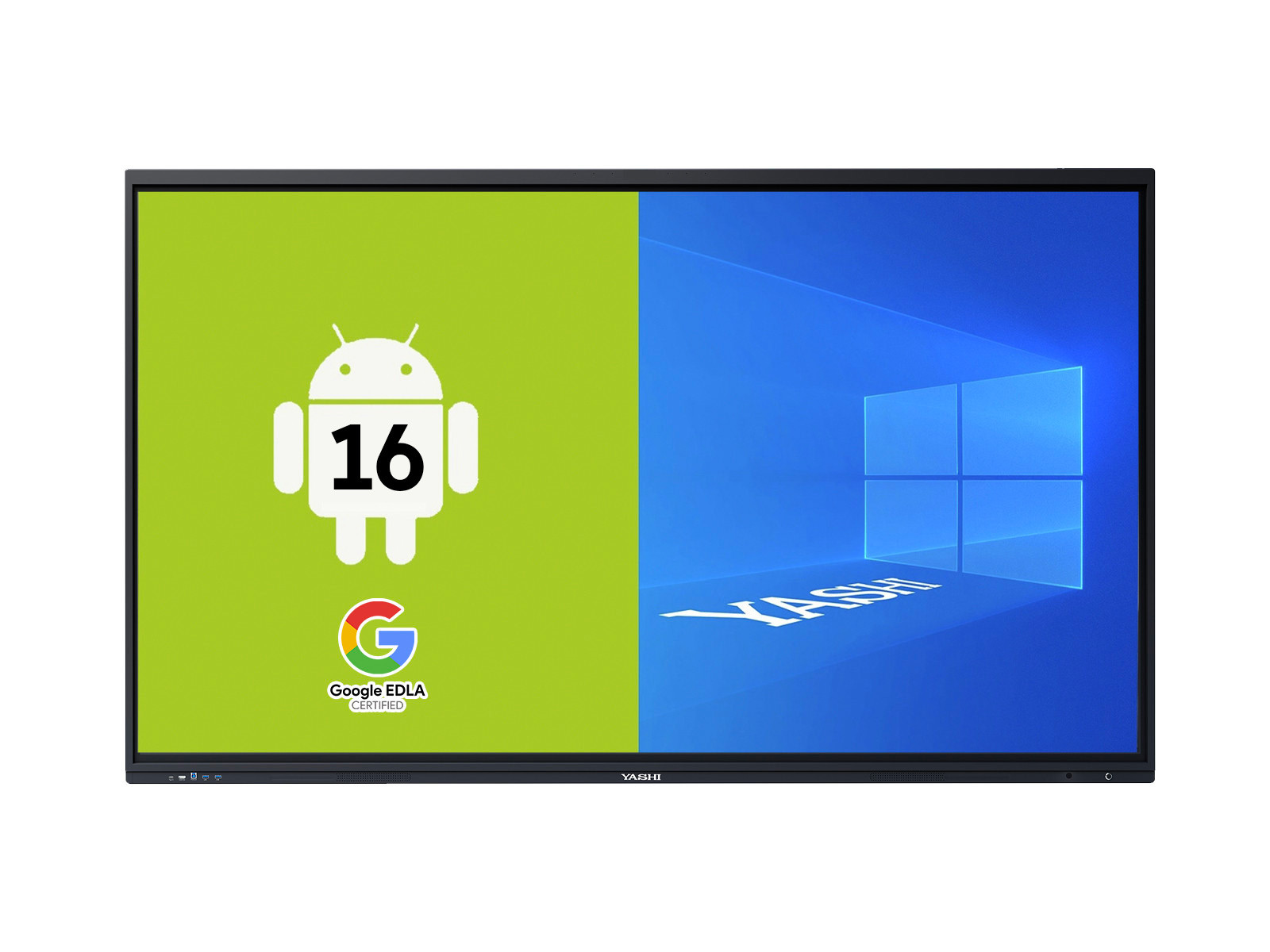

LY8625 - YASHI SUPERTOUCH AI 86" 8/128 A16 EDLA
