Specifications

TECHNICAL SPECIFICATIONS
Altre caratteristiche
Form Factor	SFF (8 Liter)
Dimensions	(DxWxH): 290mm x 95mm x 325mm
Security	Keylock Kensigton lock ready
Supported CPU:	Intel® Core processors (Series 2)
Slots and capacity	2 x SODIMM DDR4 slots, Dual channel memory architecture Up to 64GB
Integrated controller	1x M.2 slot (KEY M) SSD - 2x SATA 3 6Gb/s
Bays	external: 1xslim interni: 1x 3.5" + 1x 2.5"
Graphics cards	Intel® Graphics
Network interface	Ethernet Controller support 1Gb
Wireless Data Network	1 x M.2 slot 2230 (KEY E) CNVi/PCIe (NO WIFI )
Expansion	NO PCIe slot
I/O interface	1 x HDMI, 1 x DP, 2x x USB 3.2 Gen1 ports, 2x USB2.0, 1x RJ45, 2 x Audio port ( Line-out, MIC)
Front I/O	2 USB 3.2 Gen.1 2 USB 2.0 1x Jack Audio 1x Jack Mic
Supported Operating Systems	Windows 11
Accesories	Keyboard and mouse optional
Processor
CPU Model	Intel Core 7
Specification	10Core ( 6 Performance + 4 Efficient) 4.0GHz/5.2GHz 24MB cache
Memory
Memory	16GB SO DDR4
Storage
Storage	SSD 512GB M.2 NVMe
Operating System
Software	Windows 11 Pro
Warranty
Warranty	2 years on-center

TECHNICAL SPECIFICATIONS
Altre caratteristiche
Form Factor	SFF (8 Liter)
Dimensions	(DxWxH): 290mm x 95mm x 325mm
Security	Keylock Kensigton lock ready
Supported CPU:	Intel® Core processors (Series 2)
Slots and capacity	2 x SODIMM DDR4 slots, Dual channel memory architecture Up to 64GB
Integrated controller	1x M.2 slot (KEY M) SSD - 2x SATA 3 6Gb/s
Bays	external: 1xslim interni: 1x 3.5" + 1x 2.5"
Graphics cards	Intel® Graphics
Network interface	Ethernet Controller support 1Gb
Wireless Data Network	1 x M.2 slot 2230 (KEY E) CNVi/PCIe (NO WIFI )
Expansion	NO PCIe slot
I/O interface	1 x HDMI, 1 x DP, 2x x USB 3.2 Gen1 ports, 2x USB2.0, 1x RJ45, 2 x Audio port ( Line-out, MIC)
Front I/O	2 USB 3.2 Gen.1 2 USB 2.0 1x Jack Audio 1x Jack Mic
Supported Operating Systems	Windows 11
Accesories	Keyboard and mouse optional
Processor
CPU Model	Intel Core 7
Specification	10Core ( 6 Performance + 4 Efficient) 4.0GHz/5.2GHz 24MB cache
Memory
Memory	16GB SO DDR4
Storage
Storage	SSD 512GB M.2 NVMe
Operating System
Software	Windows 11 Pro
Warranty
Warranty	2 years on-center

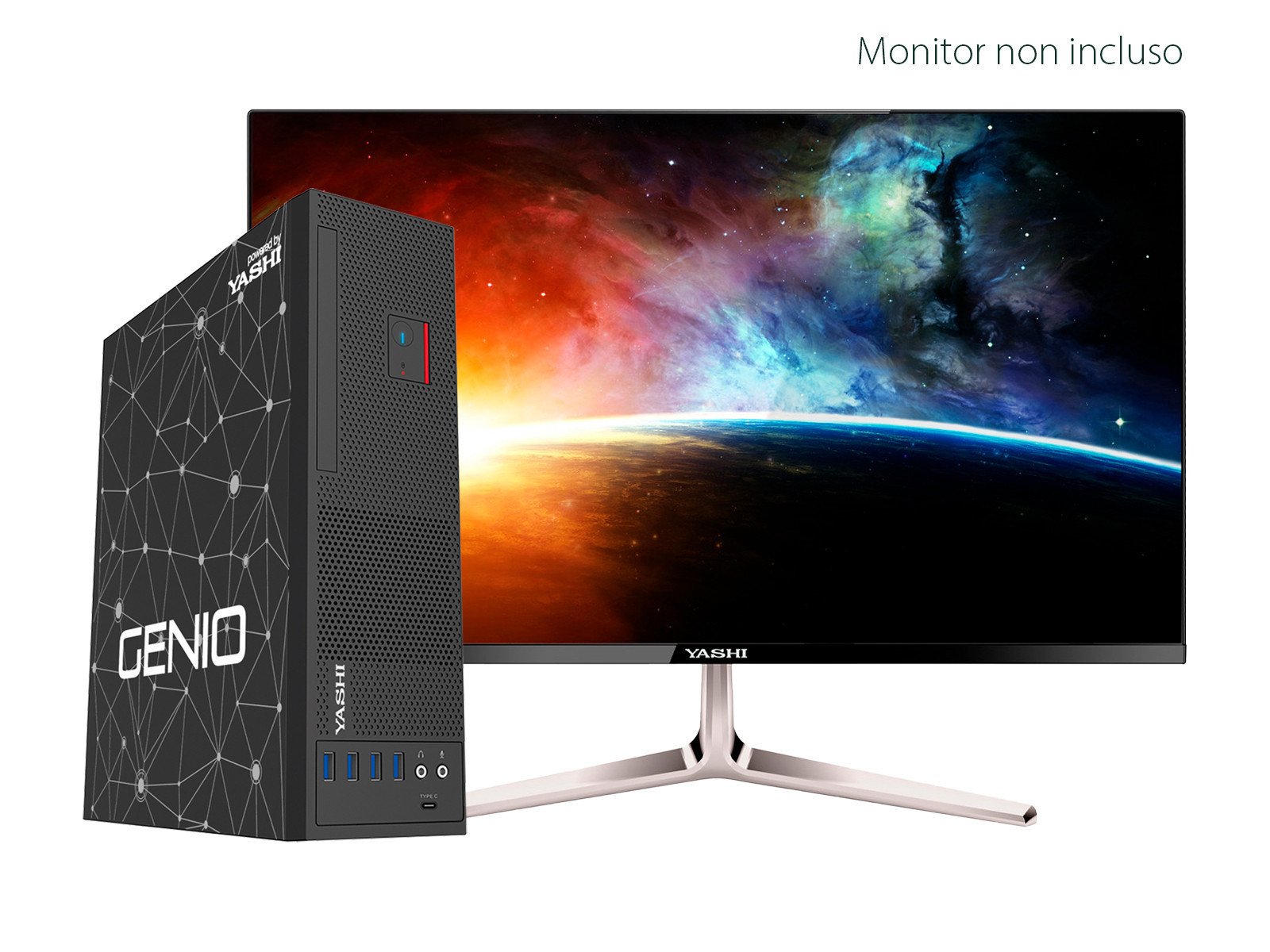

YY80215 - YASHI GENIO C7 240H 16/512GB W11P
