Specifications

TECHNICAL SPECIFICATIONS
Display
Tecnology Methods	Infrared touch
Active Area Size	75"
Functionality	Integrated AI
Formato	16:9
Surface	Antiglare 5mm Defense Tempered Glass
Numero tocchi simultanei	Up to 50 touches
Touch Systems	Finger & Magic Pen
Resolution	4K 3840 x 2160 pixel at 60Hz 1.07 billion colors (10bit)
Brightness	560cd/m^2
Static contrast	5000:1
View angle	178/178
Life Time	50.000 Hours min.
response time	3ms
Precision	< 1 mm
Processor
CPU	RK3576 Octa-Core with AI
Memory
RAM	8GB
Storage	128GB
Altre caratteristiche
Webcam & Mic	No
Speaker	2x40W + 20W sub
Card reader	Si
Power consumption ?W?	MAX 360W (3W in Standby)
SLOT OPS	Optional OPS Slot OPS 80 Pin Intel-C
Certificates	FCC, CE, ROHS, IEC and ISO 9001
Interface
Frontal interface to computer	1x HDMI in, 2 x USB-A 3.0, 1x Type-C 1 x USB-A 3.0 (for touch)
Rear underside interface to computer	2x HDMI in, 1x HDMI Out, 1x DP in, 1x VGA in, 2x USB 3.0, 1xUSB 3.0 (touch),1x mic in, 1x RJ45, 1x COM, 1x OPS Slot, 1x USB 2.0, 1x Type-C, 1x line out, 1x SPDIF, 1x VGA Audio in, 1x RJ45 out, 1x microSD reader
Interface wireless	Wi-Fi 6, Bluetooth 5.2
Dimensions
Dimension	1711x1036x51 mm
Net weight	53 Kg (Net) - 63 Kg (Gross)
Packaging dimension	1848 x 210 x 1134 mm 65KG
Operating System
Operating System	Android 14 EDLA - upgradable
Software
App	EDU App WXBoard for Windows QuickShare app for mirroring
Vesa
Vesa	600x400 mm
Stand
Support for wall mounting	Wall bracket included
Floor stand	Optional mobile stand
Accessories
Accessories	2x Pen 1x Remote control, 1x wall bracket, 1x HDMI Cable, 1x USB touch Cable
Warranty
Warranty	3 anni on-center

TECHNICAL SPECIFICATIONS
Display
Tecnology Methods	Infrared touch
Active Area Size	75"
Functionality	Integrated AI
Formato	16:9
Surface	Antiglare 5mm Defense Tempered Glass
Numero tocchi simultanei	Up to 50 touches
Touch Systems	Finger & Magic Pen
Resolution	4K 3840 x 2160 pixel at 60Hz 1.07 billion colors (10bit)
Brightness	560cd/m^2
Static contrast	5000:1
View angle	178/178
Life Time	50.000 Hours min.
response time	3ms
Precision	< 1 mm
Processor
CPU	RK3576 Octa-Core with AI
Memory
RAM	8GB
Storage	128GB
Altre caratteristiche
Webcam & Mic	No
Speaker	2x40W + 20W sub
Card reader	Si
Power consumption ?W?	MAX 360W (3W in Standby)
SLOT OPS	Optional OPS Slot OPS 80 Pin Intel-C
Certificates	FCC, CE, ROHS, IEC and ISO 9001
Interface
Frontal interface to computer	1x HDMI in, 2 x USB-A 3.0, 1x Type-C 1 x USB-A 3.0 (for touch)
Rear underside interface to computer	2x HDMI in, 1x HDMI Out, 1x DP in, 1x VGA in, 2x USB 3.0, 1xUSB 3.0 (touch),1x mic in, 1x RJ45, 1x COM, 1x OPS Slot, 1x USB 2.0, 1x Type-C, 1x line out, 1x SPDIF, 1x VGA Audio in, 1x RJ45 out, 1x microSD reader
Interface wireless	Wi-Fi 6, Bluetooth 5.2
Dimensions
Dimension	1711x1036x51 mm
Net weight	53 Kg (Net) - 63 Kg (Gross)
Packaging dimension	1848 x 210 x 1134 mm 65KG
Operating System
Operating System	Android 14 EDLA - upgradable
Software
App	EDU App WXBoard for Windows QuickShare app for mirroring
Vesa
Vesa	600x400 mm
Stand
Support for wall mounting	Wall bracket included
Floor stand	Optional mobile stand
Accessories
Accessories	2x Pen 1x Remote control, 1x wall bracket, 1x HDMI Cable, 1x USB touch Cable
Warranty
Warranty	3 anni on-center

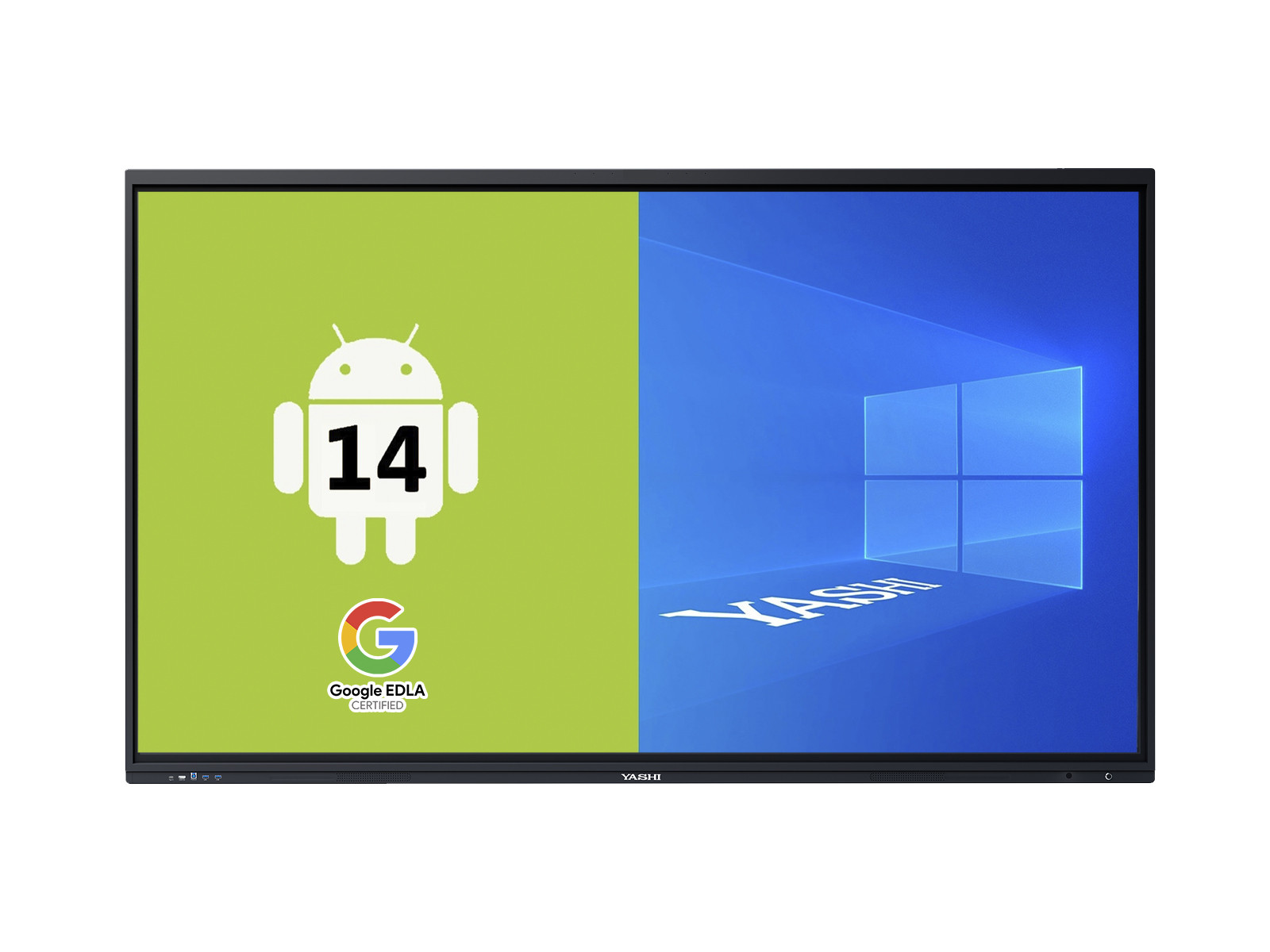

LY7522 - YASHI SUPERTOUCH AI 75" 8/128 A14 EDLA
