Specifications

TECHNICAL SPECIFICATIONS
Altre caratteristiche
Form Factor	Rack 19" 4U deep 17,5" (505mm)
Dimensions	505mm x 482,6mm x 177,8mm
System Cooling Fans	2x 90mm (pre installed) fans
Chipset	Intel Z790
Slots and capacity	4x DIMM, Max. 192GB, DDR5
DVD-RW	not present, optional
Integrated controller	3x M.2 PCIE 4x4, 4x Sata3 6.0, Intel Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10.
Bays	External: 3x5.25" + 1x3.5" Internal: 4x3.5"
Graphics cards	Intel 730, multi output: DP, HDMI
Audio	Realtek 8-Channel High Definition Audio
Network interface	1x Realtek 2.5Gb Ethernet
Wireless Data Network	Vertical M.2 Key E slot
Expansion	1x PCI Express 5.0 x16, 3x PCI Express 4.0 x16(x4), 1x PCI Express 3.0 x1
I/O interface	1x USB 3.2 Gen2x2 Type-C, 1x USB 3.2 Gen2, 2x USB 3.2 Gen1, 4x USB 2.0, 1x DisplayPort, 1x HDMI, 1x RJ45, 3x Audio
Front I/O	2 x usb 3.1 Gen. 1
Management	WOL by PME, PXE
Accesories	IT Keyboard with 104 keys and mouse 3 keys with scroll
Power Supply
Power Supply	1100W 80 Plus with 12cm fan
Processor
CPU Model	Intel Core i5
Specification	i5 14400 10Core ( 6 Performance + 4 Efficient) 1.8GHz/2,5GHz up to 4.7GHz 20MB cache
Memory
Memory	16GB DDR5 4800
Storage
Storage	Diskless
Other Storage	Optional
Operating System
Software	Freedos
Warranty
Warranty	2 years on-center

TECHNICAL SPECIFICATIONS
Altre caratteristiche
Form Factor	Rack 19" 4U deep 17,5" (505mm)
Dimensions	505mm x 482,6mm x 177,8mm
System Cooling Fans	2x 90mm (pre installed) fans
Chipset	Intel Z790
Slots and capacity	4x DIMM, Max. 192GB, DDR5
DVD-RW	not present, optional
Integrated controller	3x M.2 PCIE 4x4, 4x Sata3 6.0, Intel Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10.
Bays	External: 3x5.25" + 1x3.5" Internal: 4x3.5"
Graphics cards	Intel 730, multi output: DP, HDMI
Audio	Realtek 8-Channel High Definition Audio
Network interface	1x Realtek 2.5Gb Ethernet
Wireless Data Network	Vertical M.2 Key E slot
Expansion	1x PCI Express 5.0 x16, 3x PCI Express 4.0 x16(x4), 1x PCI Express 3.0 x1
I/O interface	1x USB 3.2 Gen2x2 Type-C, 1x USB 3.2 Gen2, 2x USB 3.2 Gen1, 4x USB 2.0, 1x DisplayPort, 1x HDMI, 1x RJ45, 3x Audio
Front I/O	2 x usb 3.1 Gen. 1
Management	WOL by PME, PXE
Accesories	IT Keyboard with 104 keys and mouse 3 keys with scroll
Power Supply
Power Supply	1100W 80 Plus with 12cm fan
Processor
CPU Model	Intel Core i5
Specification	i5 14400 10Core ( 6 Performance + 4 Efficient) 1.8GHz/2,5GHz up to 4.7GHz 20MB cache
Memory
Memory	16GB DDR5 4800
Storage
Storage	Diskless
Other Storage	Optional
Operating System
Software	Freedos
Warranty
Warranty	2 years on-center

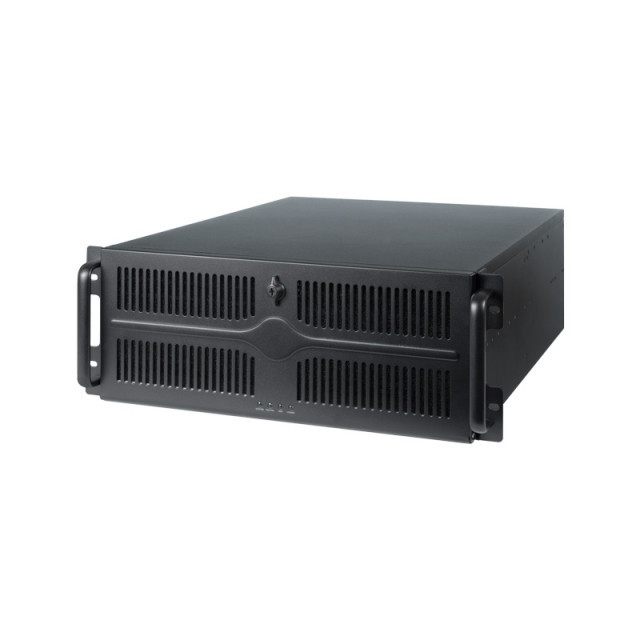

WY4010 - EXPERT GRAPHICS RACK 4U Z790 DDR5
